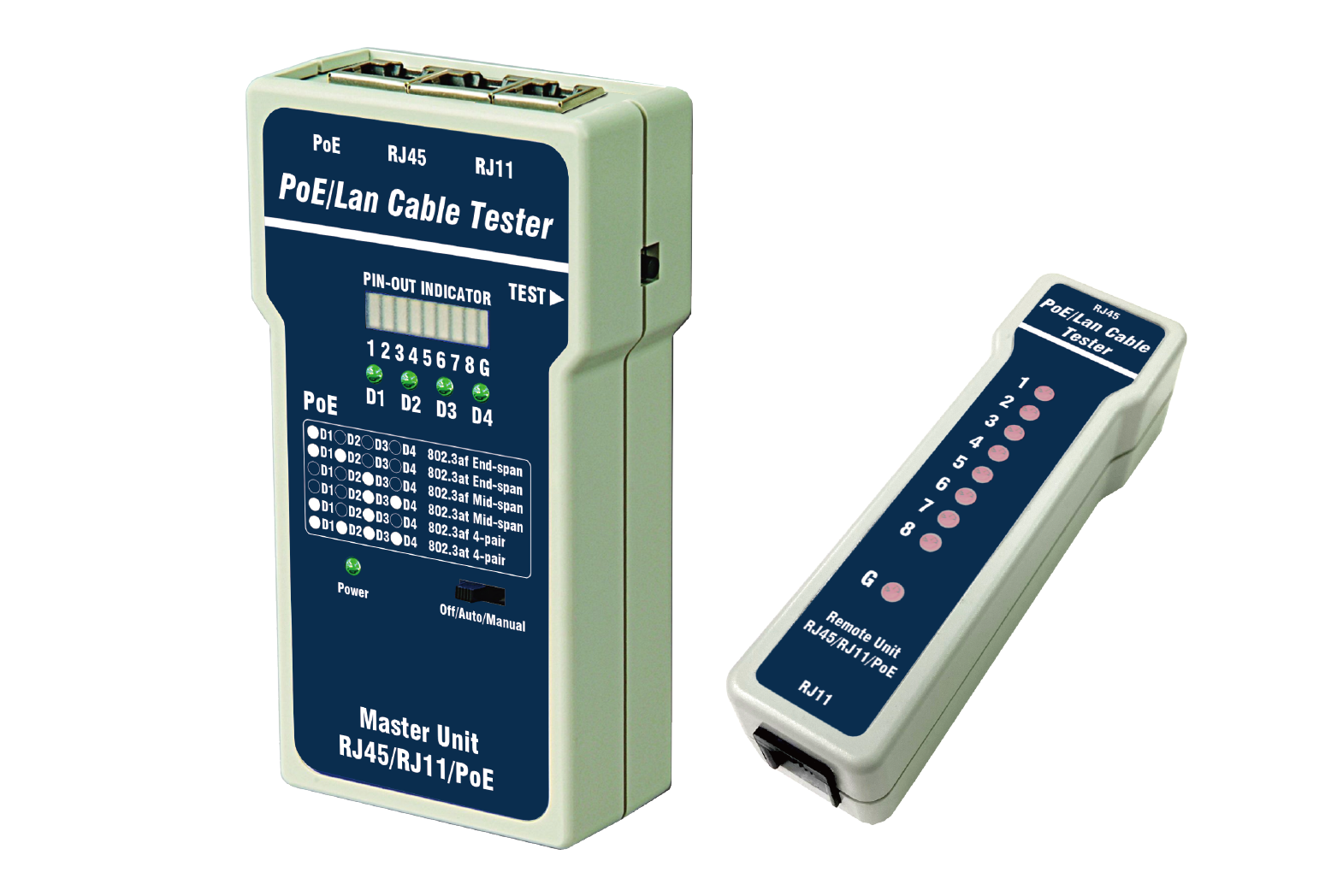

PoE/Lan Cable Teser
  PoE/Lan Cable Teser
  21-8101-19
  Refer following content
  Refer following content
  CE & UL & RoHs & Reach
  Refer following content
  Refer following content
  Please Login To View!
  Please Login To View!


  Please Login To View Spec. & Manual!



Introduction:
The Handheld Lan Cable Tester is an intelligent continuity tester for PoE, LAN cables and Phone cable. Open, short and miss wiring are also tested. It provides the installers an ease of use which keeps you from wasting time through complex menus.
For the PoE mode, the test result will be show on master mainly. For the RJ45/RJ11 mode, the master will be scan every pin from PIN 1 to Ground/G, the test result will be show on remote mainly, please kindly to see manual about detail.

Features:
Easy diagnose RJ45 Lan cable, phone cable, with present wiring schemes.
The multiple LEDs display a clear indication.
Easy diagnose the situation of open, short, miss wiring, cross over and ground.
The three-step switch for auto, manual and off.
Quick test PoE (802.3af & 802.3at, End-span & Mid-span, 4-pair)
Only used in live circuit in PoE mode.
Maximum length of testing cable is 1,000 feet.
  (The battery power is not low less than 7V.)

Size:
Master Unit : L=11.8cm, W=6.4cm, H=3.2cm
Remote Unit : L=9.9cm, W=3.1cm, H=2.6cm

Note: Under the mode of RJ45/RJ11, please do not operate the tester in live circuit because it may cause the tester damaged.

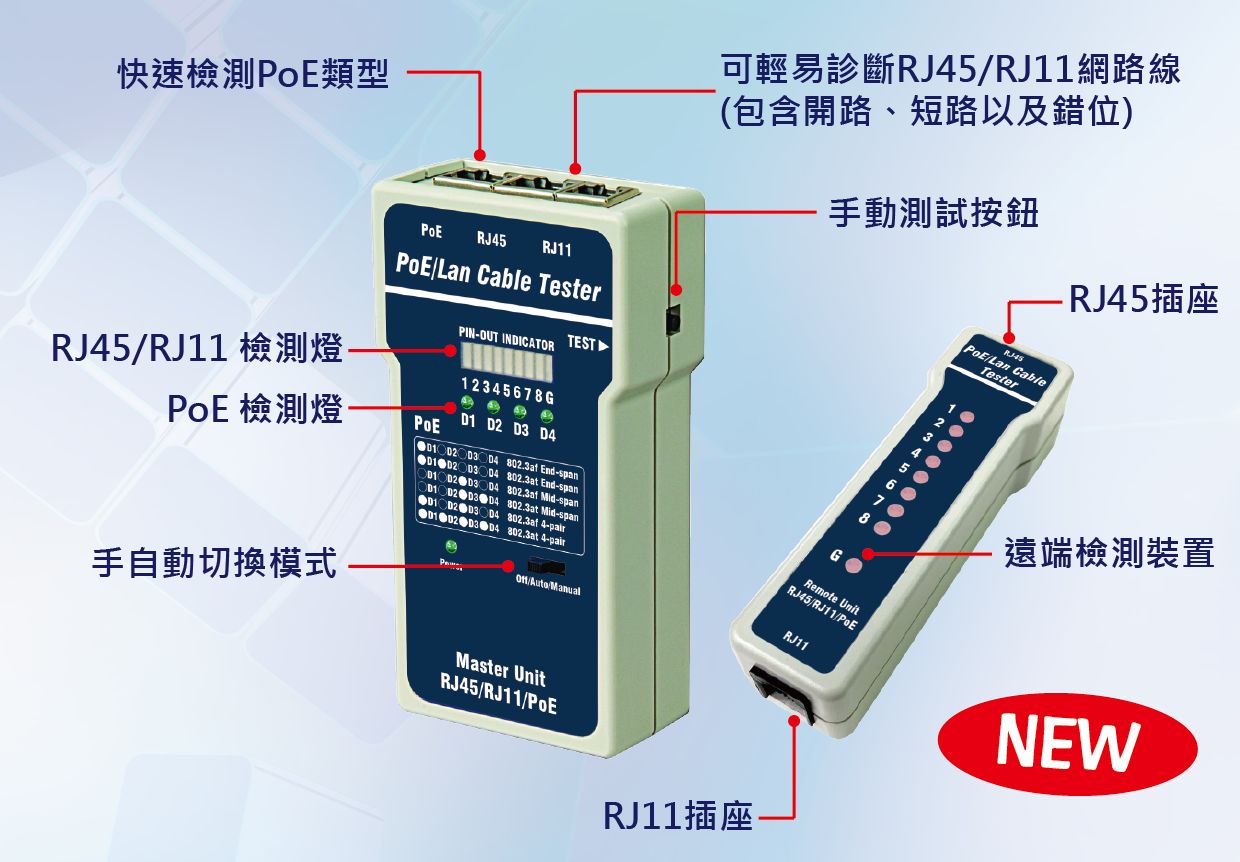

Poe/Lan Cable Tester



簡介:
這款攜帶式網路線材測試儀是一台PoE、網路線及電話線的智能測試儀。開路、短路與錯位同時都可被測試,它提供安裝人員簡易操作,省去閱讀複雜手冊所浪費的時間。在PoE模式下,其測試結果主要會顯示在Master。在RJ45/RJ11模式下,主機以掃描方式偵測每個點,從PIN1到接地G,其測試結果主要會顯示在Remote。,詳情請見說明書。


特色:
可輕易診斷RJ45網路線、電話線
可輕易透過LED
燈顯示讀出每一種線材狀況
可輕易診斷線材狀況為開路、短路、錯位、跳線或接地
‧三段式滑動開關-自動、手動及關閉

可快速測試PoE模式(802.3af & 802.3at, End-span & Mid-span, 4-pair)
PoE
模式能在動態線路下使用
最長測試線材長度: 1,000英呎(電池電力不可低於7V.)

警示:在RJ45/RJ11模式下,請不要在動態下操作本產品,因會造成測試儀器的損壞。

尺寸:
主機: L=11.8cm, W=6.4cm, H=3.2cm
遠端: L=9.9cm, W=3.1cm, H=2.6cm

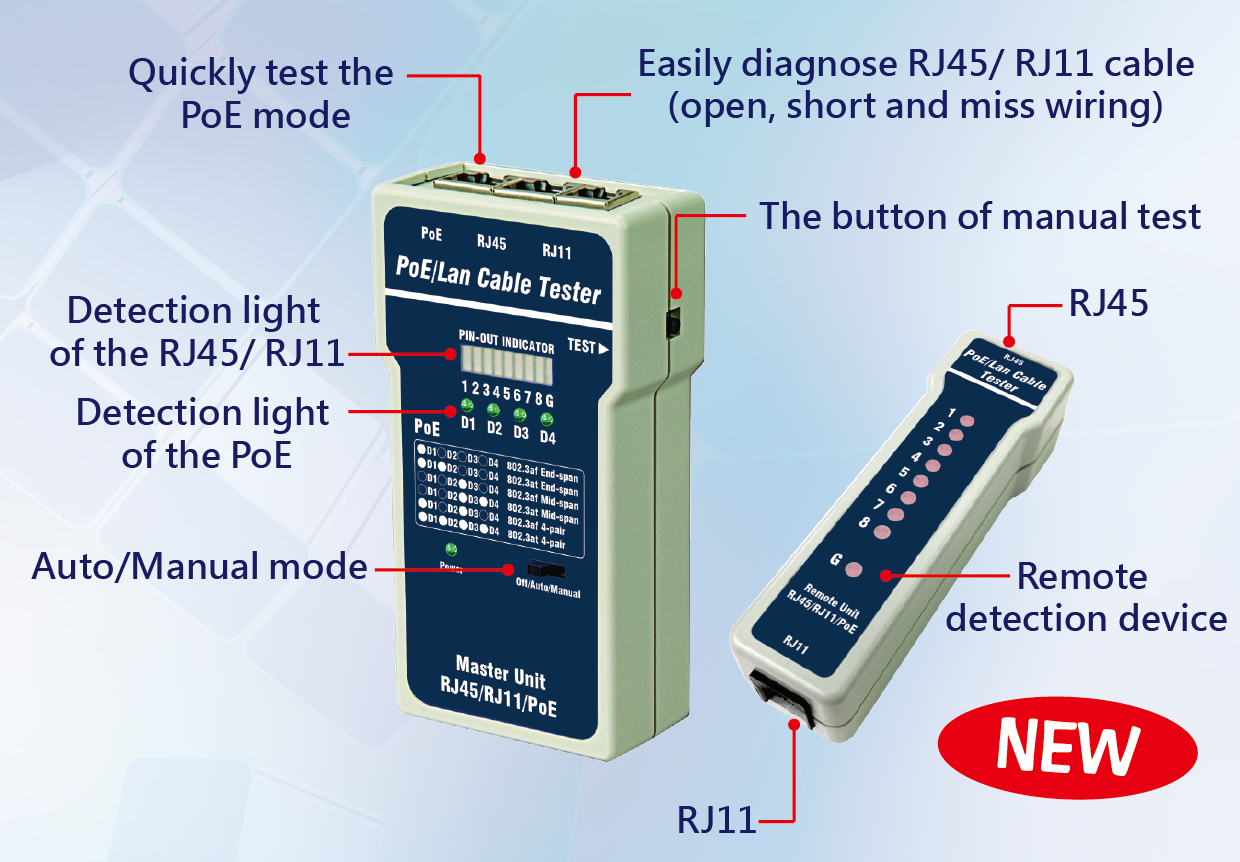

Poe/Lan Cable Tester



#PoE #Lan Cable Tester #802.3 af #802.3at #Mid-Span #End-Span
